Dante Embedders & De-Embedders

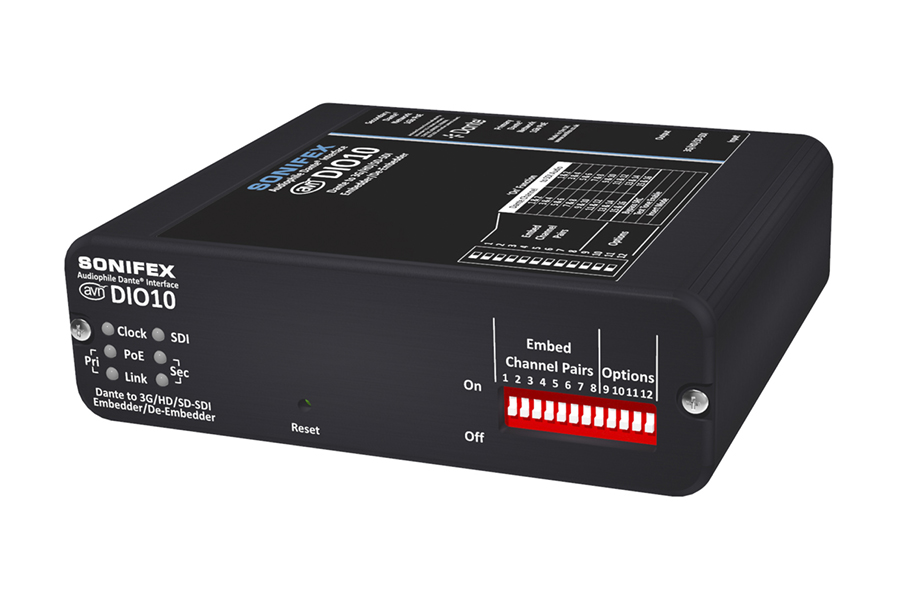

• Sonifex AVN-DIO10 Dante to 3G/HD/SD-SDI Embedder/De-Embedder



  Available from Jan 2020, the Sonifex AVN-DIO10 Dante to 3G/HD/SD-SDI Embedder/De-Embedder is our newest Dante product – the easiest way to connect legacy SDI equipment to the Dante network. The Sonifex AVN-DIO10 Dante to 3G/HD/SD-SDI Embedder/De-Embedder can be used for simultaneous embedding and de-embedding of 16 channels of audio.

  This simple plug and play audio/video interface provides a convenient and elegant method of connecting legacy 3G/HD/SD-SDI equipment to the Dante AoIP audio network.

  • 1 x 3G/HD/SD-SDI input.
  • 1 x reclocked 3G/HD/SD-SDI output.
  • Dual redundant Primary and Secondary Dante network ports using Neutrik EtherCon® Ethernet connectors.
  • Powered via PoE (Power over Ethernet) with PoE dual redundancy.
  • Fully Dante compliant device.
  • AES67 compatible.
  • Dante Domain Manager compliant.
  • Web interface for configuration.
  • Clock, SDI Lock, PoE and Sync LEDs.
  • DIPSwitch selection of embed channel pairs.
  • DIPSwitch cover plate to secure selections made.
  • SDI audio sample rate support at 48kHz.
  • All available Dante sample rates supported.

  For more information, please visit this product's webpage.
